Low Fix Panel For 12mm pipe 600mm*600mm with Screed Holes and Self Adhesive

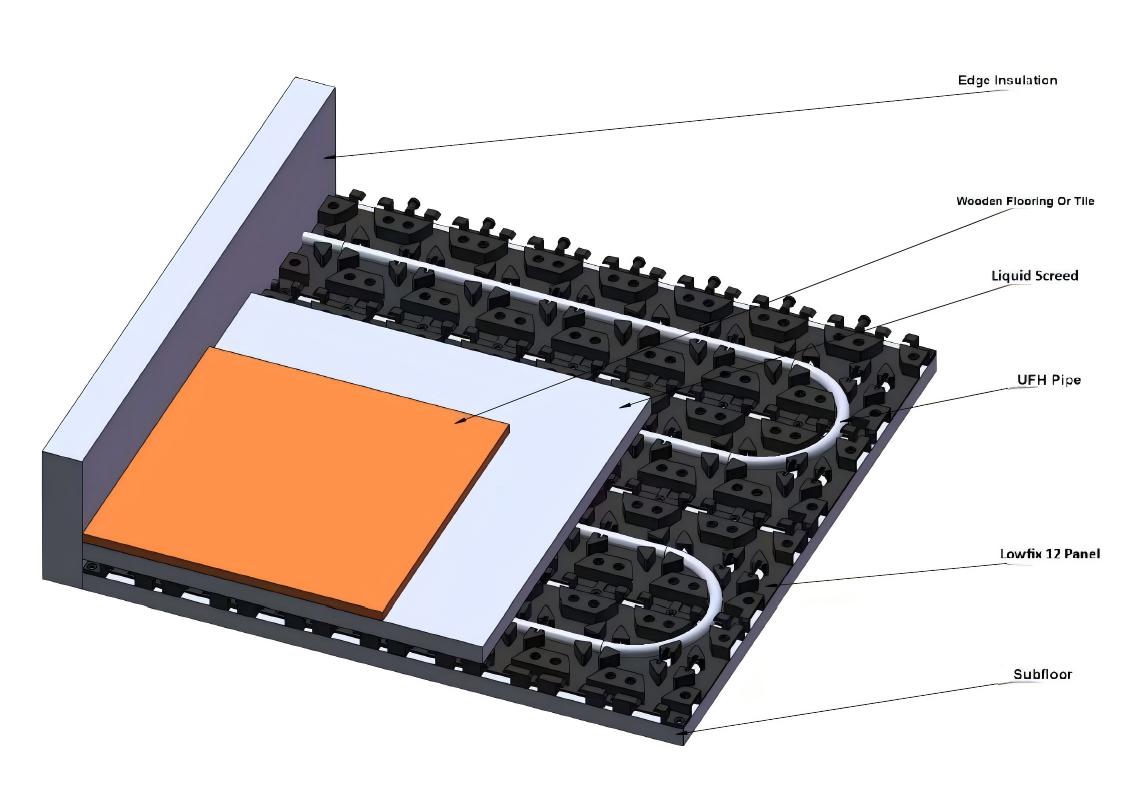

The Lowfix Panel is a revolutionary pipe retention system, which provides a very quick to install and simple to use solution for a wide range of floor heating, wall heating or ceiling cooling applications.

The trays are provided in black, and can be neatly overlapped to create a fully interlocking continuous grid floor panel ready for the pipes which can be fixed at 75, 150 mm pipe centres.

Features and Benefits

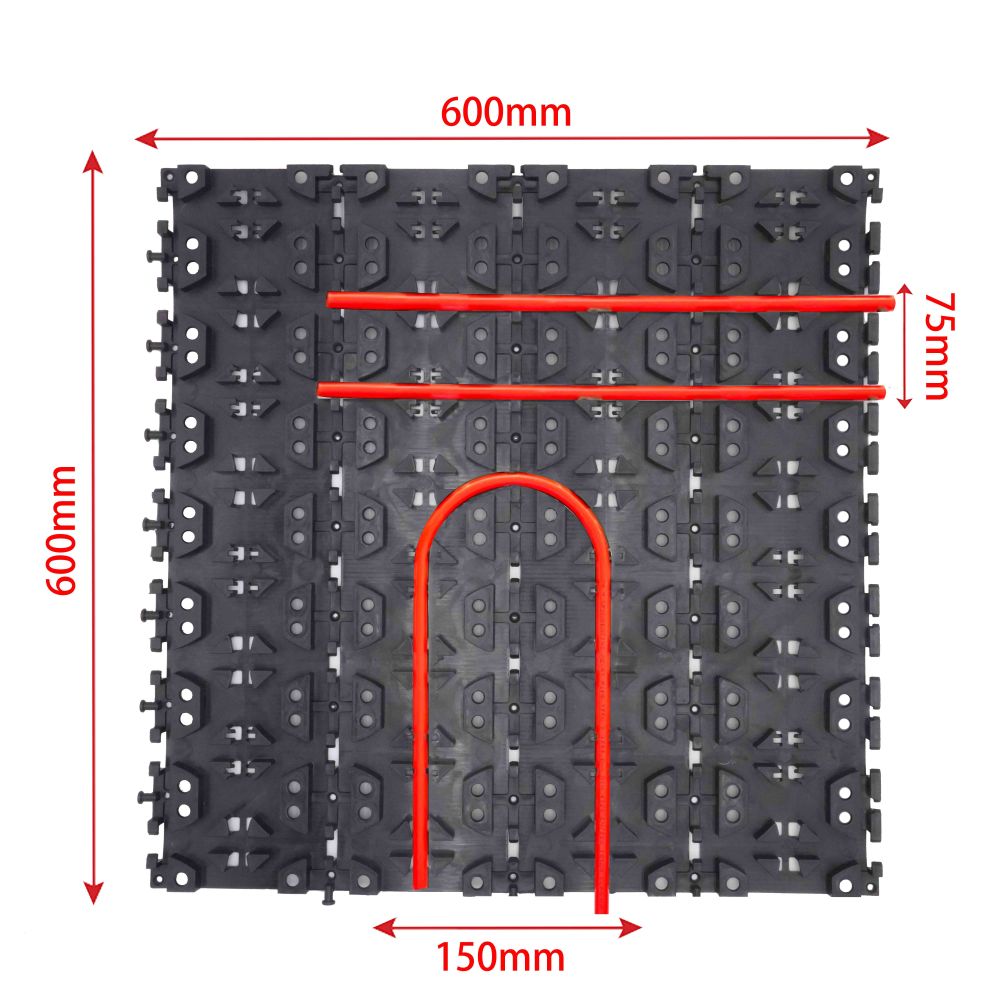

• Total size 600mm x 600mm x 15.5mm

• Suitable for 12mm pipes

• Pipe Centres can be at 75mm, 150mm

• Easy to install • Made from Recycled High Impact Polystyrene

• Minimum amount of waste

• Eliminates pipe contact with insulation

• Each panel will cover approx 0.35 square metre

• Colour - black
