UFH Chip boards -12mm kit

Be the first to review this product

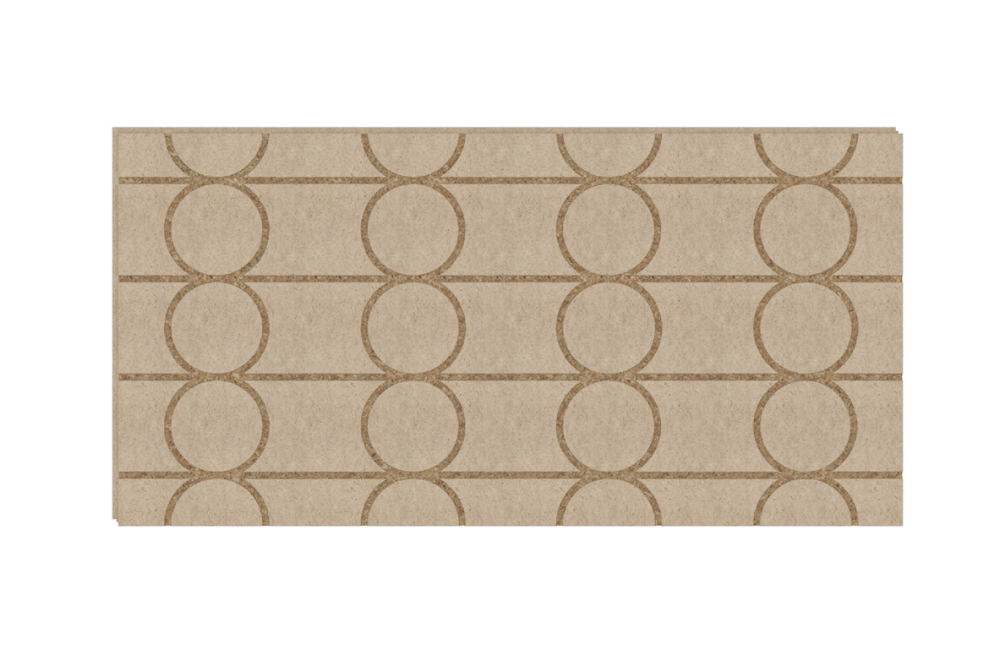

Kit include chipboards and chipboards overlay panel

1200mm x 600mm x 28mm

with 150mm pipe centre

Suitable for 12mm pipe

£25.00 £20.83

Availability: In stock

SKU

CB12 kit

Details

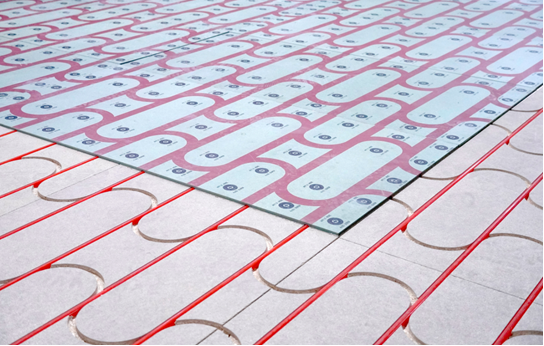

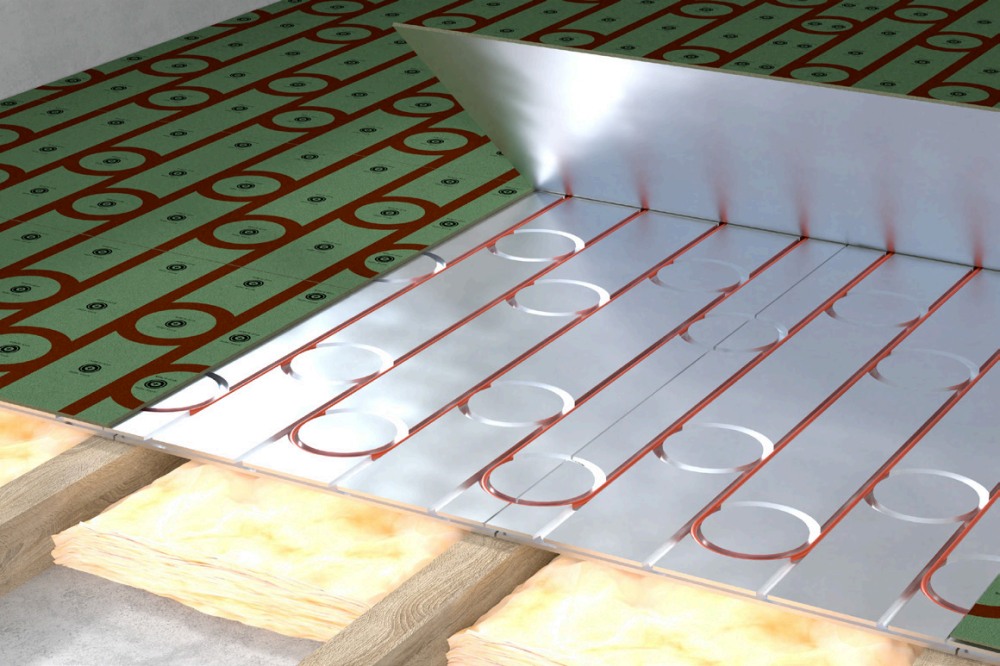

Chipboards and Chipboards overlay panel are a structural underfloor heating system designed for suspended timber floors. With a total build-up of 28mm, it replaces the existing floor deck without increasing floor height. Suitable for both new-build and renovation projects, the system is installed directly onto joists up to 600mm centres and combines a routed P6 chipboard base with a foil-coated fibre board cover layer.

Technical data:

Performance	CB12	CBL12
Dimension(mm)	120060022	12006006
Density	666kg/m³	850kg/m³
Surface Soundness	more than 0.8Mpa	more than 1.4Mpa
Swelling Rate	less than14%	less than18%
Eco-friendly grade	E0	E0
Route sizes available(to suit pipe diameter)	12mm	12mm
