8 Zones wireless Wiring Centre - 230v Zone Control Box

Be the first to review this product

8 zone Wireless Wiring Centre

£79.99 £66.66

Availability: In stock

SKU

wc8-RF

Details

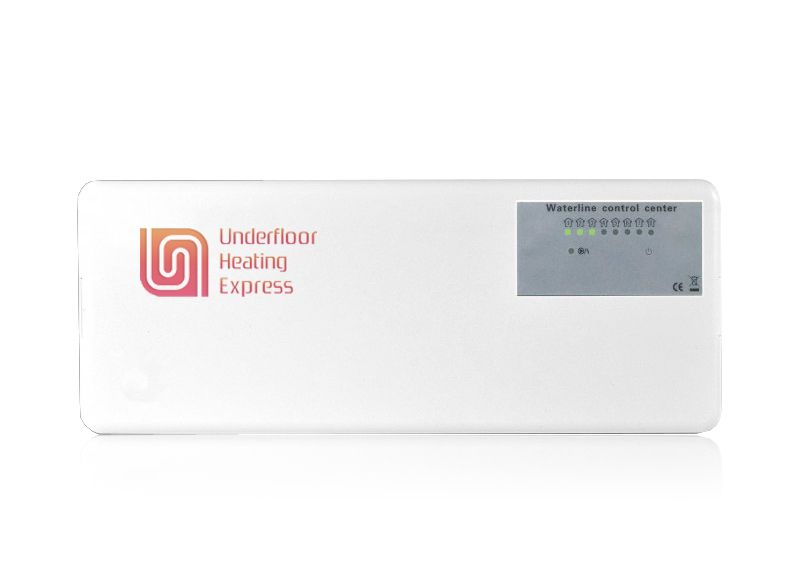

8 Zones Wireless Wiring Centre - Zone Control Box

Specification:

Number of zone outputs: 8 zones
Supply voltage 100-240Vac, 50/60Hz
Output voltage 230Vac, 50/60Hz
Max Load 4A
Left Hand: 1 x potential free relay output
Right Hand: 1 x independent relay output (230Vac, 3A)
Two relays will be engaged whenever one or more thermostats stop heating activity
Ambient temperature 0°C - 50°C

Other Specification:

Height: 110mm
Width: 280mm
Depth: 40mm
Weight: 0.70kg
Guaranteed for: 5 Years
Operating Voltage: 230V (4A)

On demand from any zone, a 230v output is provided to switch the relevant zone actuator, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.
