25MM Solid Floor Routed Panel for 16 / 15 mm Underfloor Heating Pipe – 200mm Centre

25MM Solid Floor Routed Panel for 16 / 15 mm Underfloor Heating Pipe – 200mm Centre

20mm Overlay Water Underfloor Heating  XPS Grooved Cement Coated Panel for 16/15mm Underfloor Heating  Pipe  200mm Spacing

20mm Overlay Water Underfloor Heating XPS Grooved Cement Coated Panel for 16/15mm Underfloor Heating Pipe 200mm Spacing

18mm - XPS 1200mmx600mmx18mm Routed Panel for 12mm Underfloor Heating Pipe – 150mm Centre

Tiles - can be laid directly on top with flexible tile adhesives.
Wooden/Laminated Floor - can be laid on top with a layer of self-levelling compound.

Regular Price £11.49 Special Price £10.75 £8.96
Availability: In stock
SKU
ROUTED150mm-18mm

(Minimum Order 50 boards)

BASED ON THE QUANTITY OF BOARDS, YOUR ORDER WILL ARRIVE EITHER BY PARCEL OR PALLETISED. IF PALLETISED. DELIVERY IS USUALLY 1-2 WORKING DAYS.

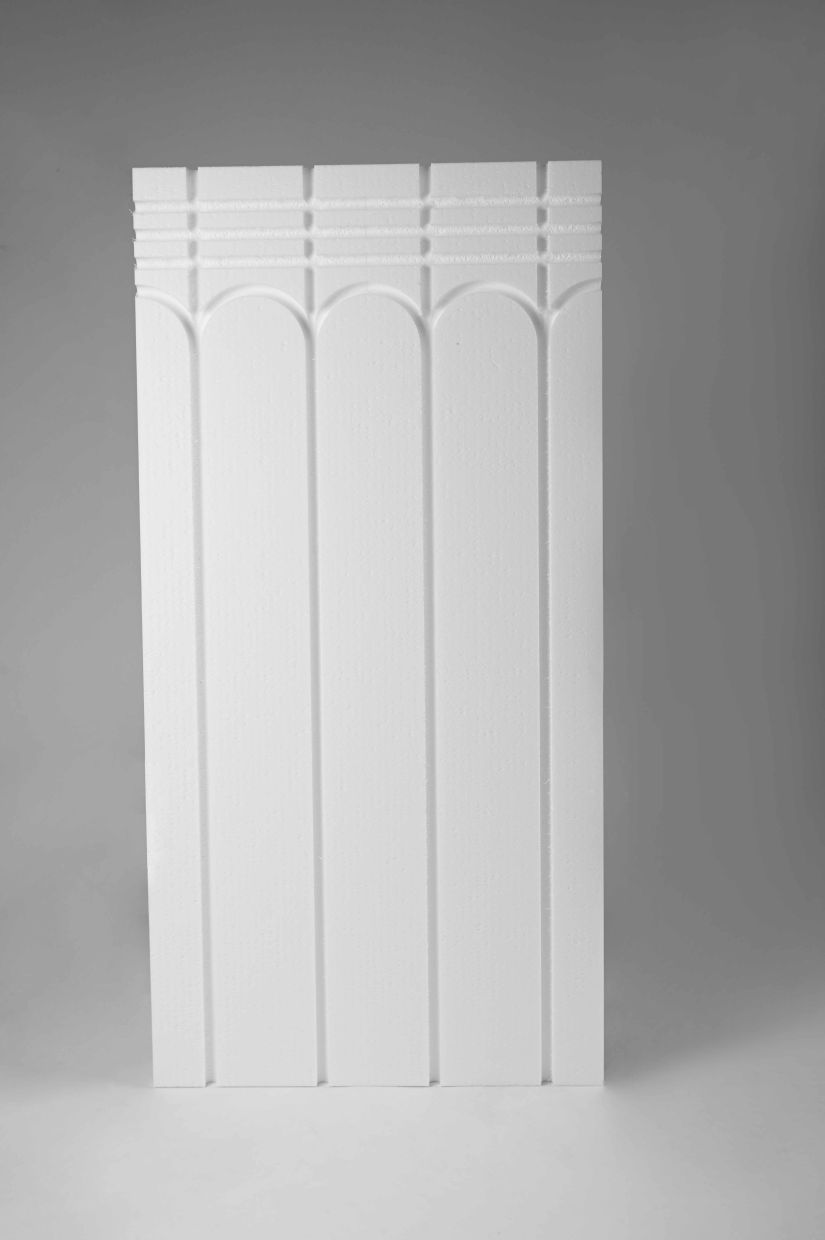

XPS 18mm Premium Solid Floor Routed Panels

Ideal for Water Underfloor Heating 12 mm pipe

Each board covers 0.72 sqm

The Extruded Polystyrene(XPS) Insulation - is known worldwide for exceptional long-term insulation performance on foundations, walls, roofs, underfloor and more.





This insulation board is designed specifically for use with water underfloor heating systems, very high compressive strength (30tonnes / m2), light weight, high efficiency and low cost make this thermal board an ideal choice when fitting heating on to a poorly insulated concrete or screed base and works excellently with water underfloor heating systems.



Dimensions

The dimensions of each board are 0.72m2 (600mm x 1200mm x 18mm)

The boards have 150mm centres.

Installations

Panels must be installed onto existing suitable subfloors ie: solid concrete/screeded floors or suitable 18mm structurally sound wooden subfloors such as 18mm exterior plywood





Key Features

  • Covered by BBA and CE certified to meet with all the EU and UK standards.
  • Worldwide respectful premium brand Styrofoam boards from Dow Chemical Co.
  • The boards have 150mm centres, providing an even distribution of heat. This system is suitable for domestic as well as commercial applications
  •
  • High compressive strength, low moisture absorbance, excellent thermal performance.
  •
  • Fire protection Class euro E grade
  •  Lightweight and strong.
  •
  • Will last lifetime (50 years warranty)
